Achromatic Lenses | IamPhotonics

Lenses /

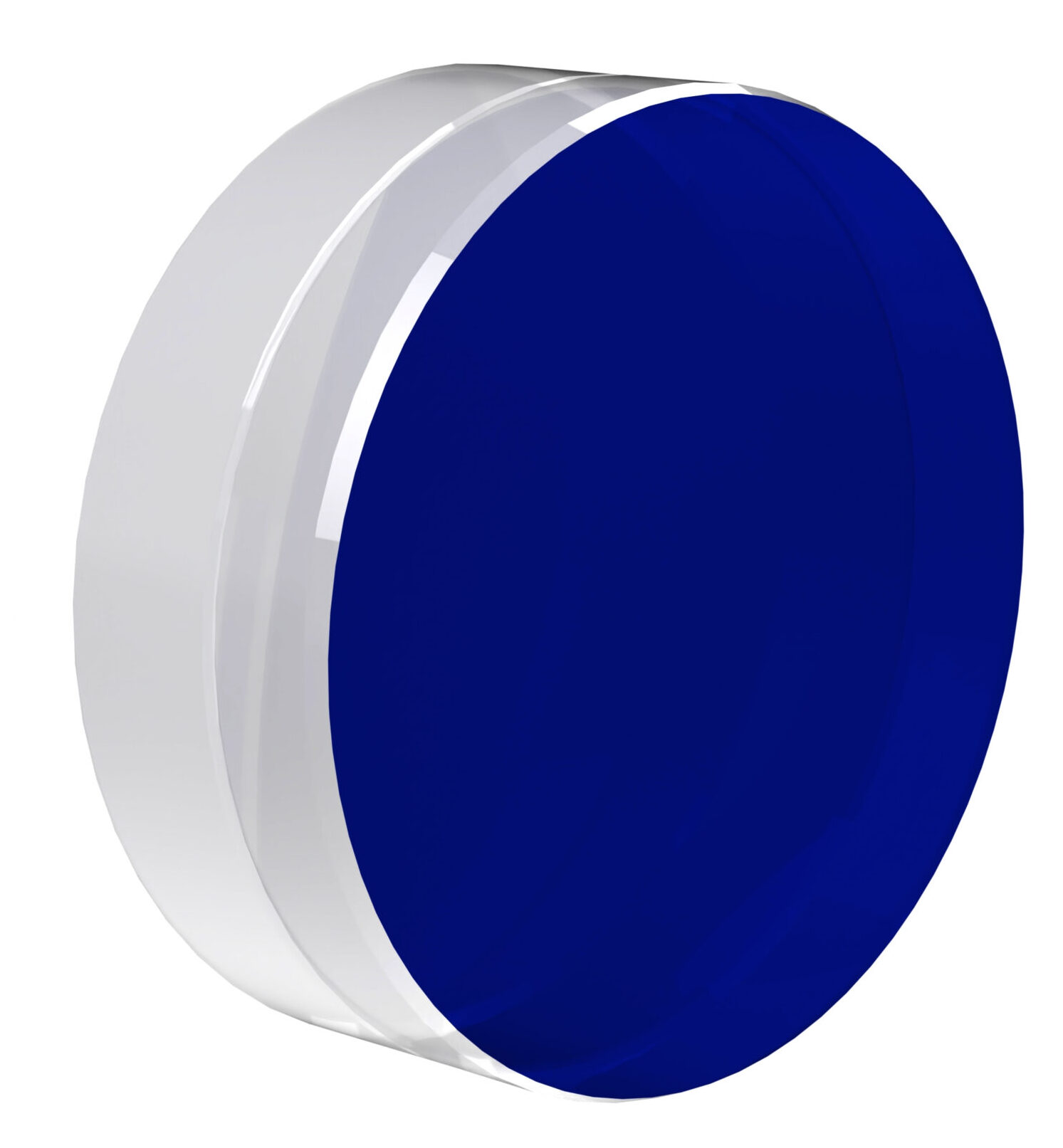

Achromatic Lenses

No images found in the gallery.

Precision lenses engineered to minimize chromatic aberration, delivering clear, color-corrected focus across multiple wavelengths. Perfect for sharp, distortion-free optics.

Color Correction Excellence

Engineered to bring two or more wavelengths to a common focus, dramatically reducing chromatic aberration compared to single-element lenses.

Optimized Design Options

Available in doublet and triplet configurations to match your specific performance requirements and wavelength range priorities.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Optical material	N-BK7/N-SF5, N-BAF10/N-SF10, Fused Silica
Surface quality	40-20 scratch-dig (acc. to MIL-PRF-13830B)
Diameter tolerance	+0/-0.1 mm
Focal length tolerance	±1%
Centering (beam deviation)	<3 arcmin
Surface irregularity	<λ/4 @ 633 nm
Clear aperture	>90%
Protective chamfers	<0.1 - 0.35 mm at 45°
Coatings	Broadband AR coatings

Applications

Laser Focusing
Optical Metrology
Microscopy
