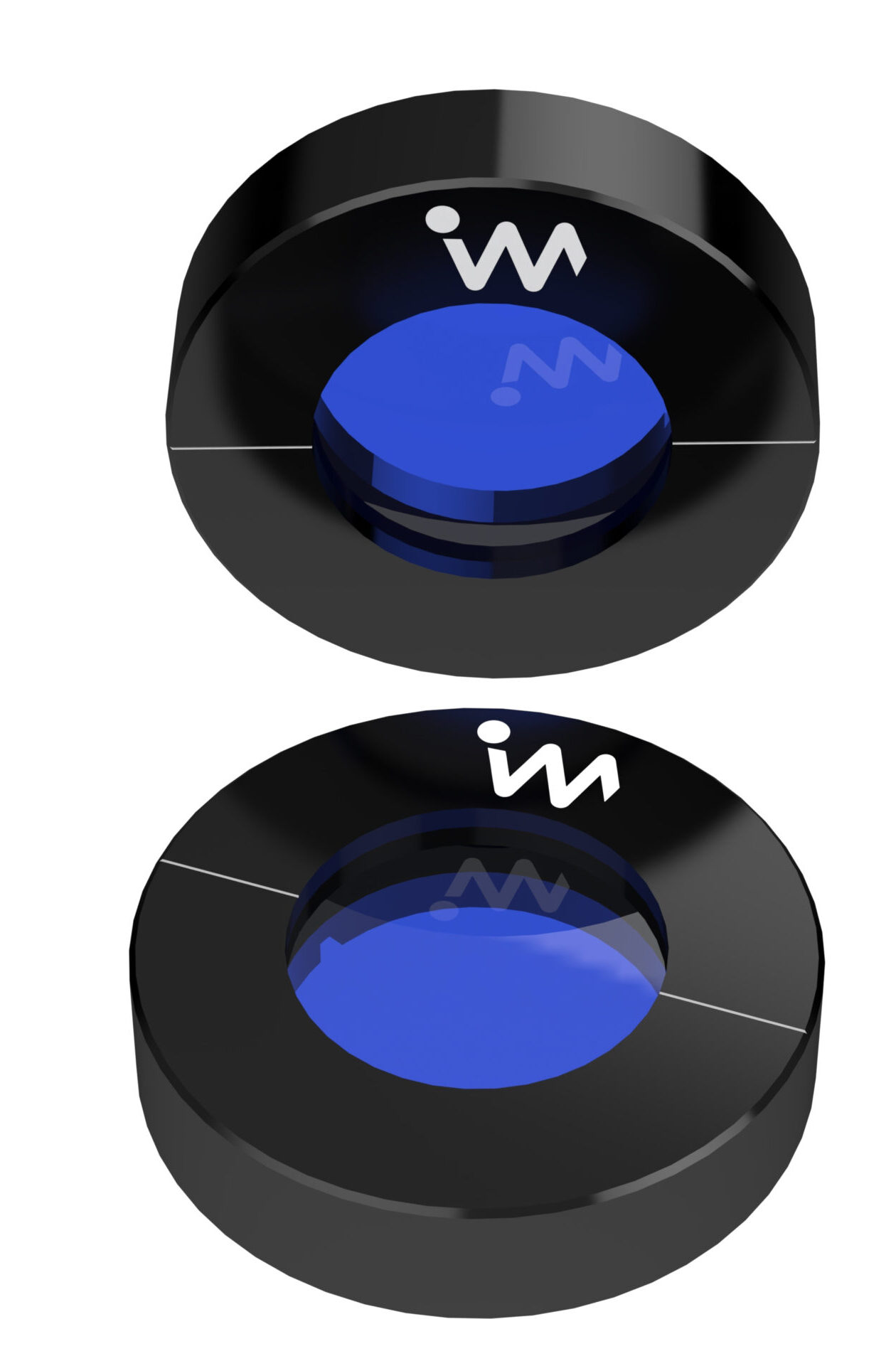

Achromatic Waveplates

No images found in the gallery.

Precision-engineered waveplates that deliver consistent retardance across a broad wavelength range, ensuring accurate polarization control for multi-wavelength systems. Ideal for applications demanding flexibility without compromise.

Precision Retardance

Available in quarter-wave (λ/4) and half-wave (λ/2) configurations with minimal retardance variation across the design bandwidth.

Robust Construction

Built to withstand repeated use in lab or industrial settings without degradation.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Optical material	Crystal Quartz and MgF2
Retardation accuracy	±λ/100
Diameter tolerance	+0/-0.1 mm
Surface quality	40-20 scratch-dig (acc. to MIL-PRF-13830B)
Transmitted wavefront distortion	<λ/8@633 nm
Parallelism	<5 arcsec
Housing	Black anodized aluminum
LIDT	>5 J/cm²@1064 nm, 10 ns, 100 Hz
Coatings	AR broadband multilayer

Applications

Multi-Wavelength Laser Systems
Imaging Systems
Scientific Research
