BBO

No images found in the gallery.

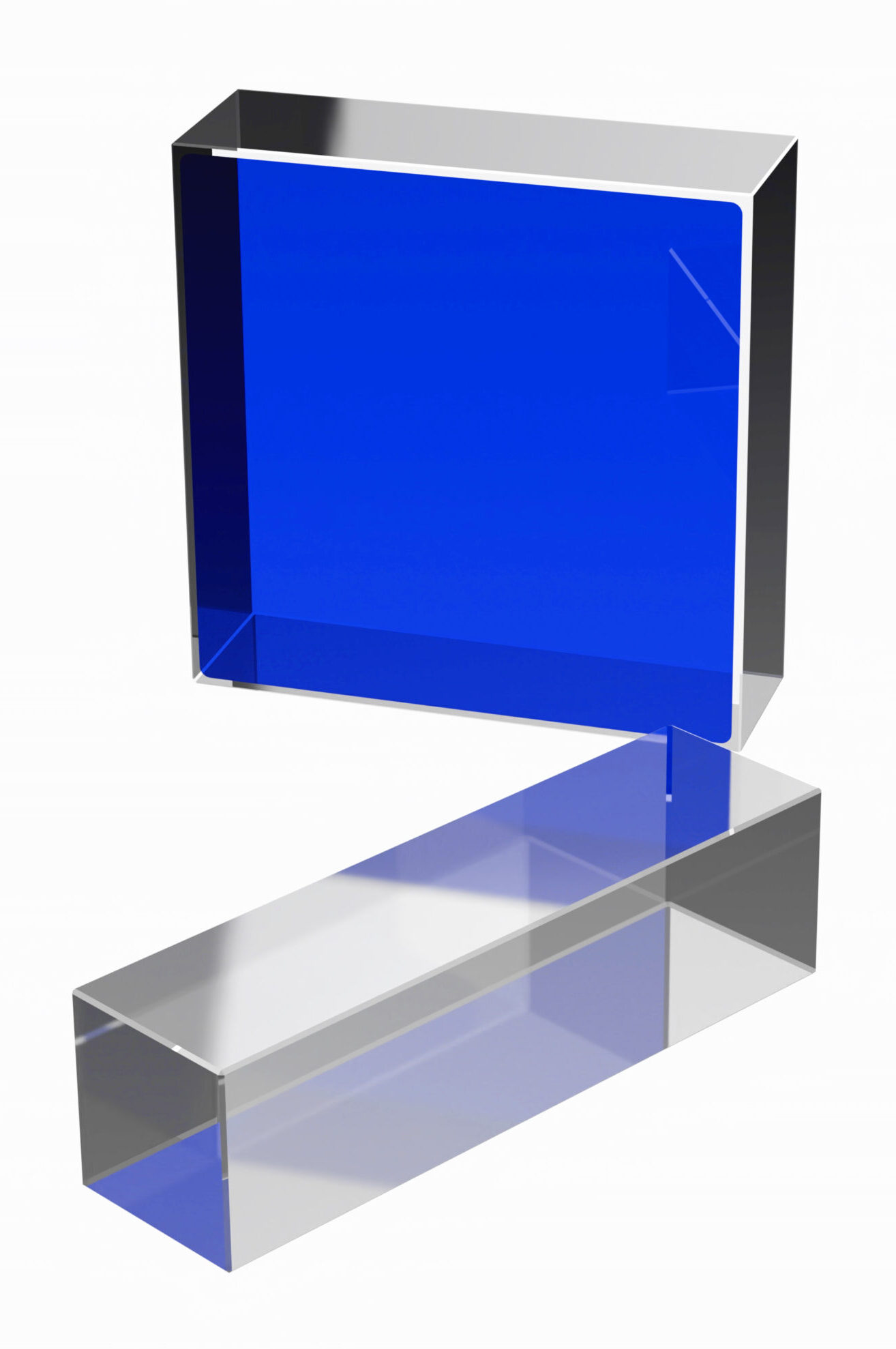

High-performance nonlinear optical crystals engineered for precise frequency conversion and harmonic generation. With a wide transparency range and exceptional damage threshold, BBO crystals excel in the most demanding optical applications.

Superior Phase-Matching

Precisely cut at optimal angles to maximize conversion efficiency in specific nonlinear applications, with tight angular tolerances for reliable performance.

Wide Transparency Range

Exceptional transmission from 189 nm to 3500 nm, making these crystals versatile for applications spanning UV through mid-IR wavelength regions.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Clear aperture	>80%
Surface quality	10-5 scratch-dig (acc. to MIL-PRF-13830B)
Dimensions tolerance	±0.1 mm
Length tolerance	±0.2 mm
Maximum crystal length	0.01 mm to 35 mm
Perpendicularity	<5 arcmin
Parallelism	<10 arcsec
Wavefront distortion	<λ/8@633 nm
Protective chamfers	<0.1 mm at 45°

Applications

Laser Frequency Conversion
Optical Parametric Oscillators
Quantum Optics
