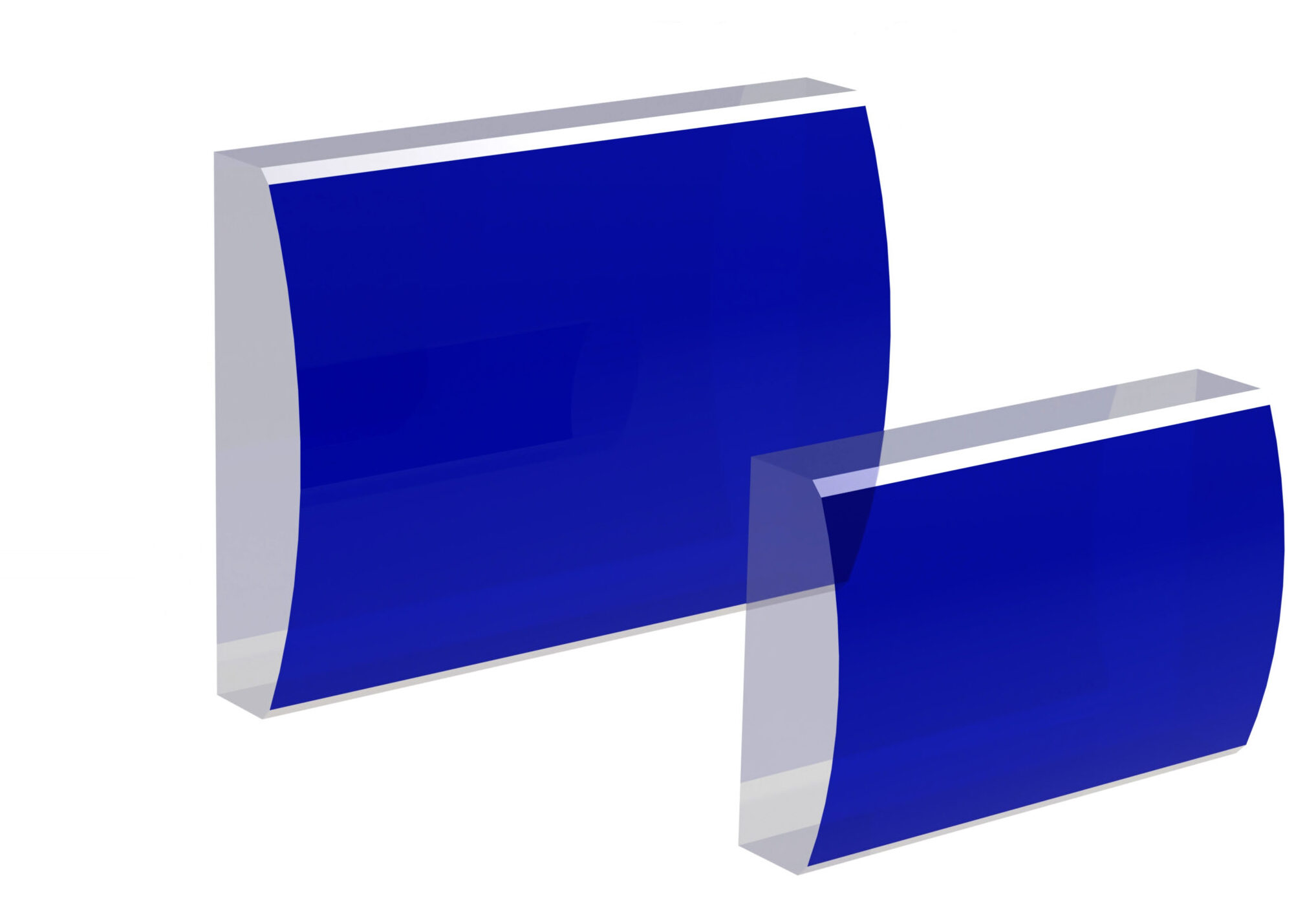

Cylindrical Lenses

No images found in the gallery.

Precision lenses designed to focus or diverge light in a single direction, delivering sharp linear control. Ideal for shaping beams or correcting optical distortions.

Beam Control

Shapes light asymmetrically with different focal powers in perpendicular axes, perfect for laser diode collimation and line generation applications.

System Compatibility

Available in plano-cylindrical and bi-cylindrical configurations with various focal lengths to match your specific beam shaping requirements.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Optical material	High-grade optical glass (e.g., N-BK7, Fused Silica)
Surface quality	40-20 scratch-dig (acc. to MIL-PRF-13830B)
Diameter tolerance	+0/-0.1 mm
Centering (beam deviation)	<3 arcmin
Surface irregularity	<λ/4 @ 633 nm
Clear aperture	>90%
Protective chamfers	<0.1 - 0.35 mm at 45°
Coatings	Custom options available
Durability	Acc. to MIL-C-675, MIL-M-13508

Applications

Laser Diode Collimation
Beam Shaping
Laser Material Processing
