Nd:YVO4

No images found in the gallery.

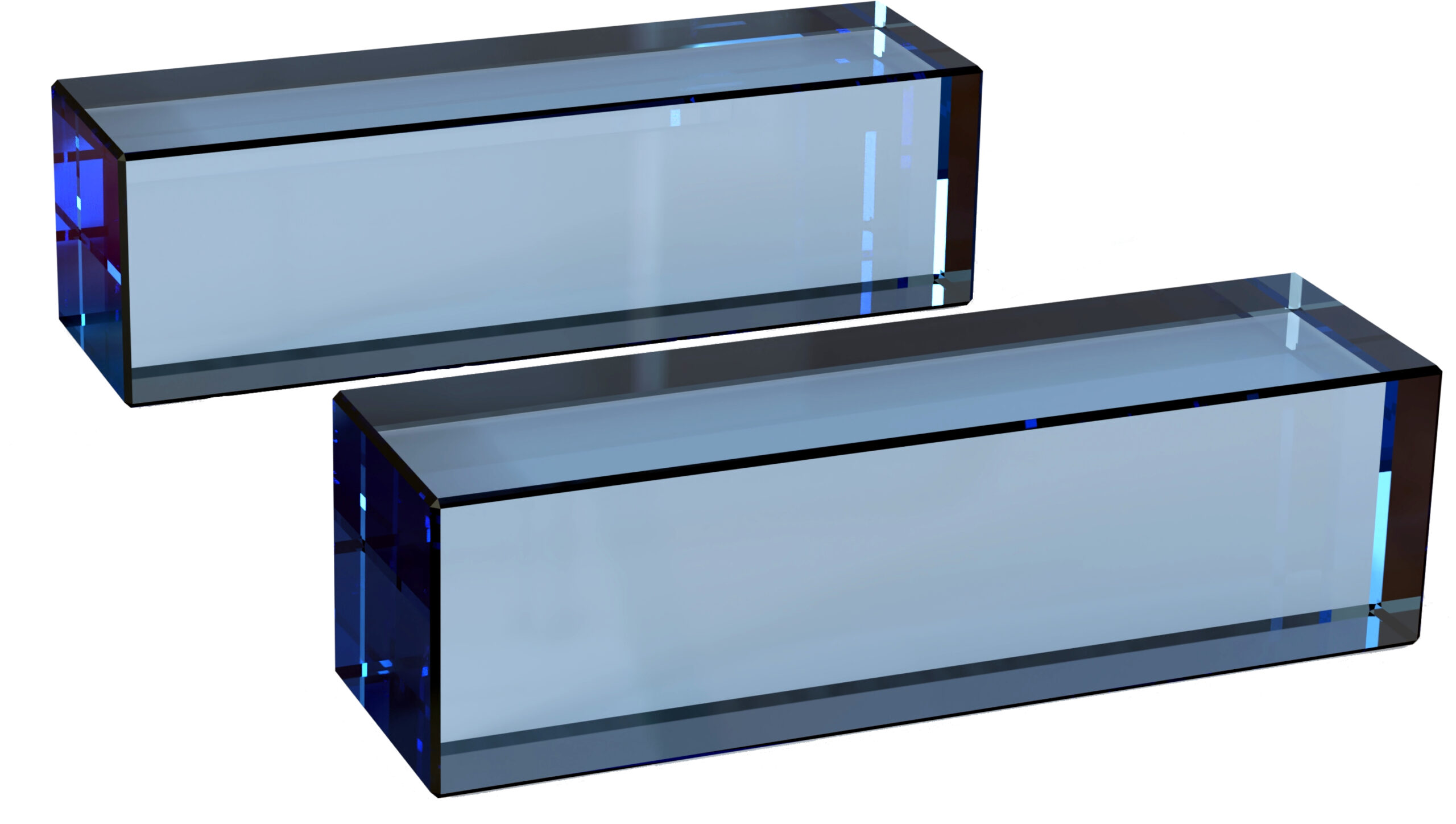

High-performance neodymium-doped yttrium orthovanadate crystals optimized for diode-pumped solid-state laser applications. Our Nd:YVO4 crystals deliver exceptional absorption efficiency, high gain, and superior thermal properties for compact, efficient laser systems operating at 1064 nm and other near-infrared wavelengths.

High Gain Efficiency

Offers excellent laser gain due to its strong absorption and high emission cross-section, making it ideal for low to medium power laser applications.

Compact and Versatile

Supports the miniaturization of laser systems while maintaining high output power and superior beam quality.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Dopant concentration	0.1-3 % Nd
Crystal orientation	A-cut/C-cut ±0.5°
Surface quality	10-5 scratch-dig (acc. to MIL-PRF-13830B)
Length tolerance	±0.1 mm
Parallelism	<10 arcsec
Perpendicularity	<10 arcmin
Surface flatness	<λ/10 @ 633 nm
Clear aperture	>95%
Protective chamfers	<0.1 - 0.15 mm at 45°
Coatings	AR/PR/HR, custom options available

Applications

Solid-State Lasers
Defense and Security
Scientific Research
