Windows

No images found in the gallery.

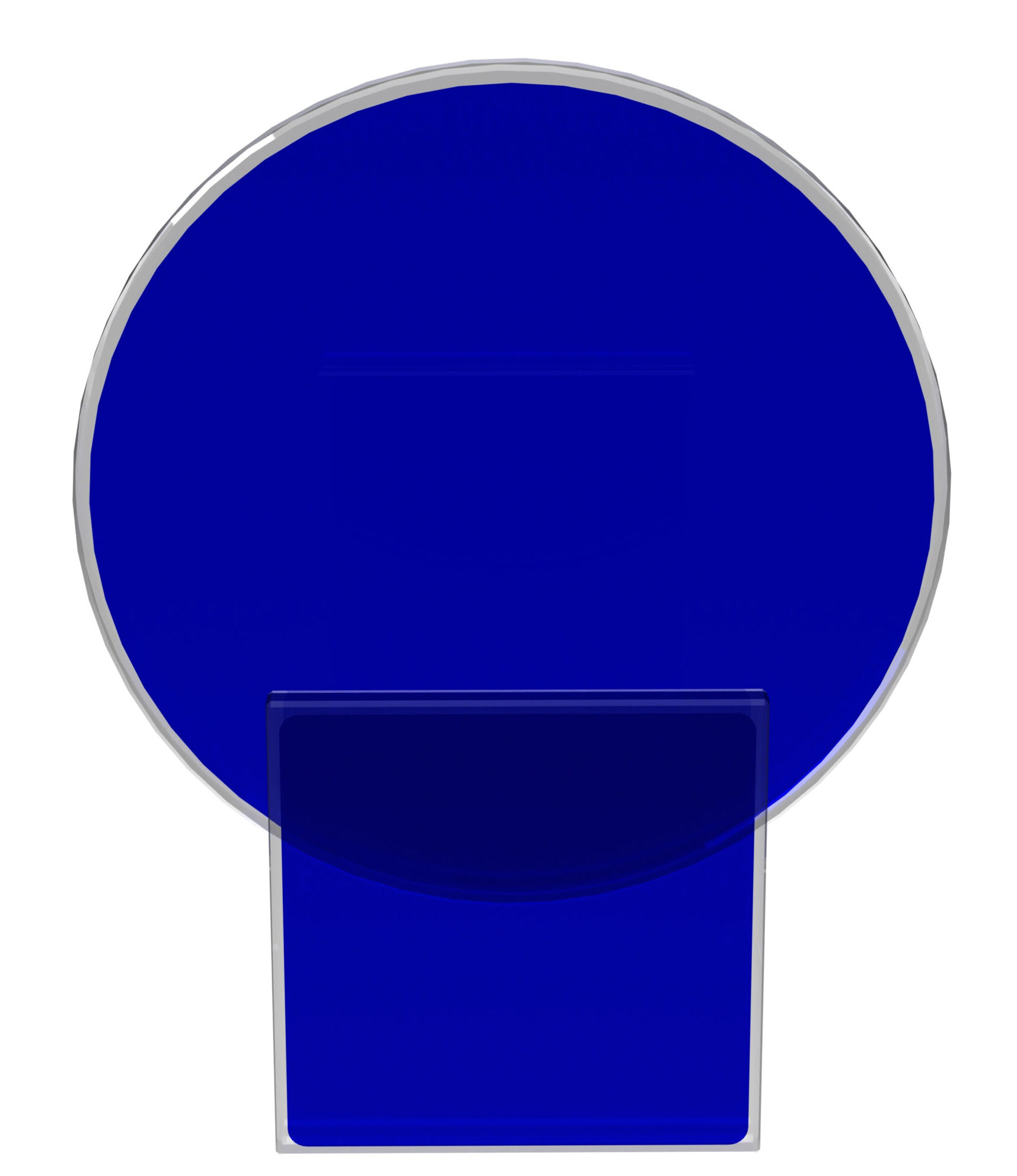

High-clarity windows with anti-reflective coatings, designed to transmit light with minimal loss and distortion. Built for precision in demanding optical environments.

Material Versatility

Available in diverse substrate options including fused silica, BK7, sapphire, and specialty materials to match transmission requirements, chemical resistance, and thermal stability needs.

Application-Specific Coatings

Can be supplied with broadband or wavelength-specific anti-reflection coatings to maximize transmission efficiency and minimize ghosting effects.

Contact sales

sales@iamphotonics.com
+370 603 13990

Product Specifications

Specification	Details
Optical Material	N-BK7, Fused Silica, Sapphire, etc.
Surface Quality	20-10 scratch-dig (acc. to MIL-PRF-13830B)
Clear aperture	>90%
Diameter Tolerance	+0/-0.1 mm
Transmitted Wavefront Distortion	< λ/8 @ 633 nm
Parallelism error	<1 arcmin
Protective chamfers	<0.1 - 0.35 mm at 45°
Coatings	Custom options available
Durability	Acc. to MIL-C-675, MIL-M-13508

Applications

No applications available for this product.
